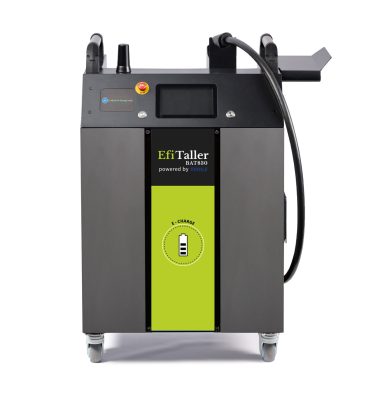

EfiTaller BAT830, electric car battery tester and charger

efitaller-bat830-cargador-y-comprobador-de-baterias-de-vehiculos-electricos

EfiTaller BAT830 powered by MAHLE

Battery diagnostics are essential for the maintenance and repair of an electric vehicle, but they also play an important role in determining its residual value. Reliable traction battery diagnostics can be crucial when purchasing a used electric car.

With its BAT830 diagnostic and service solutions, our supplier MAHLE Afermarket is the first in the world to enable independent workshops to perform traction battery diagnostics on electric vehicles, helping to achieve additional business volume beyond the combustion engine.

View technical details
Know more

The EfiTaller BAT830 includes much more

Technical Consulting (optional)
Remote Technical Assistance Service (optional)

Any questions?

Write us

Featured features

Quick battery check

Battery diagnosis in less than 15 minutes.

Charger for electric vehicle batteries

It can be used exclusively as a charger.

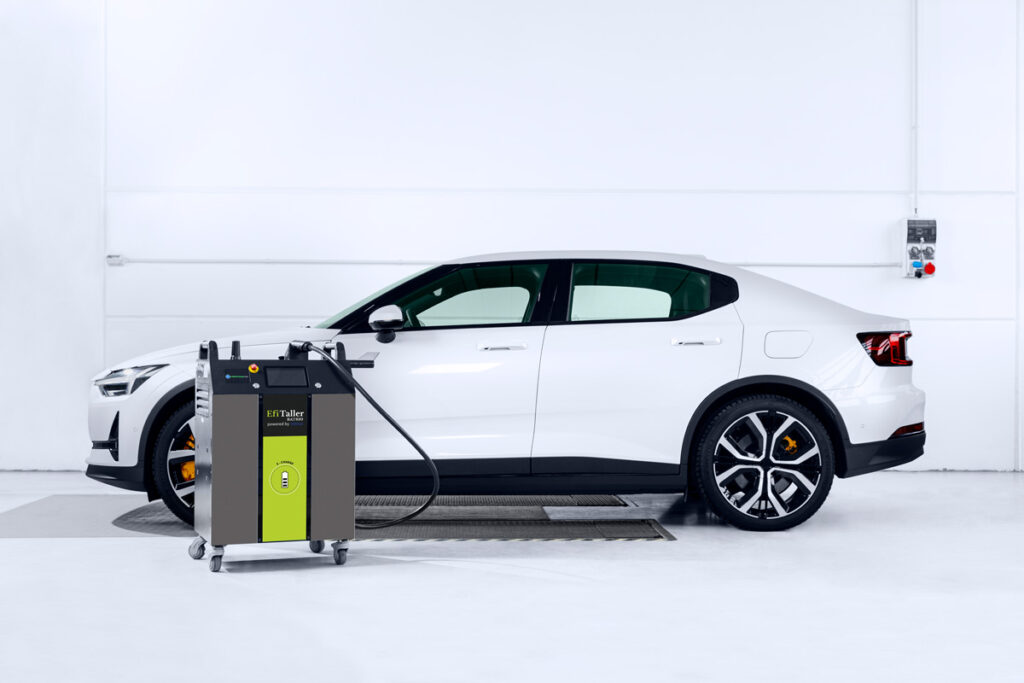

Convenient battery check

It is not necessary to move the vehicle during the operation

Manufacturer-independent diagnosis

It is independent of the vehicle and manufacturer and is supplemented with data via the OBD port.

Portable

Flexible work environment via mobile device.

Agile preparation for use

Ready for use in two minutes maximum.

Technical data

Weight

≤ 80 kg

DC charging connector

type CCS

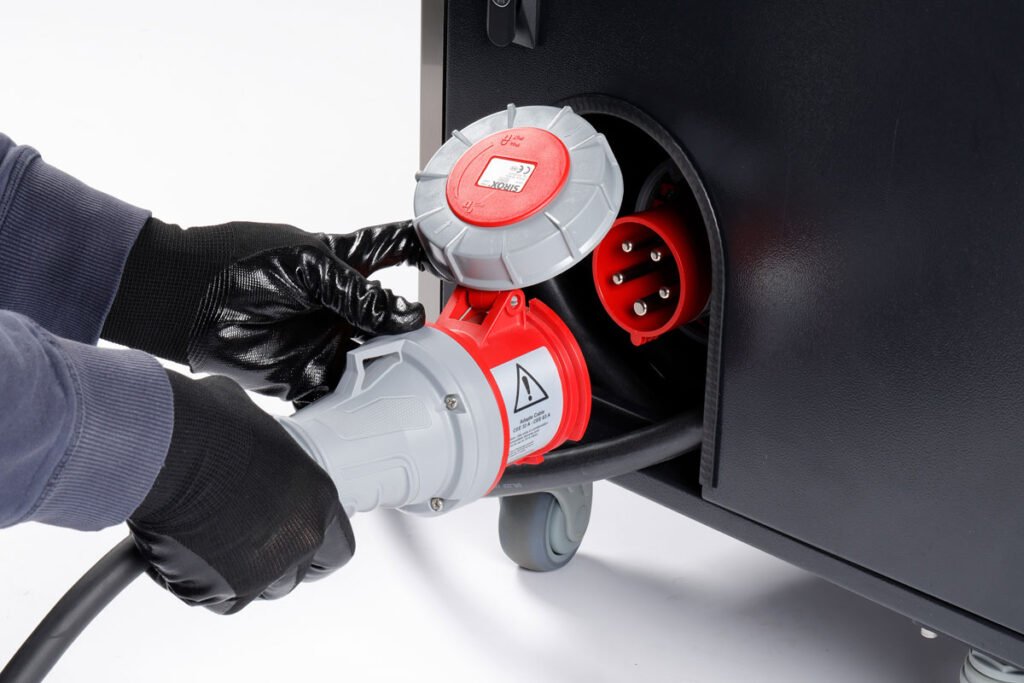

Input cable and connection

32A CEE Socket & 10M,16mm2 AC Cable

Ingression protection

IP55

Anti-vandalism

IK10 (does not include LCD & RFID cover)

Input current rating

32 A

Max. input power

33 kVA

Electrical distribution

3P+ N +PE (Wye configuration)

Efficiency

> 94 %, at optimize V/I point

Max. output current CCS

80 A@150 VCC ~ 375 VCC

Output voltage up to 950Vdc

The output current is 31.5 A

Max. output power DC

20 kW CC

Voltage accuracy

±2 %

Current accuracy

±2 %

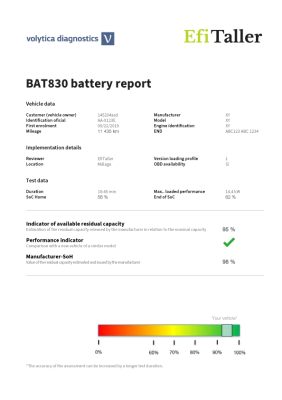

Electric vehicle battery report

ENG-report-battery-report-BAT830

The data is evaluated in a cloud from the battery specialists Volytica Diagnostics, classified in relation to already recorded batteries of the same type and compared with the original capacity of the vehicle model.

The EfiTaller BAT830 can analyse the following data from any electric car battery:

  • Indicator of available residual capacity.
  • Performance indicator (Comparison with a new vehicle of a similar model).
  • Manufacturer-SoH (State Of Health).
  • Start and End of SoC (State Of Charge).
  • Max. loaded performance.

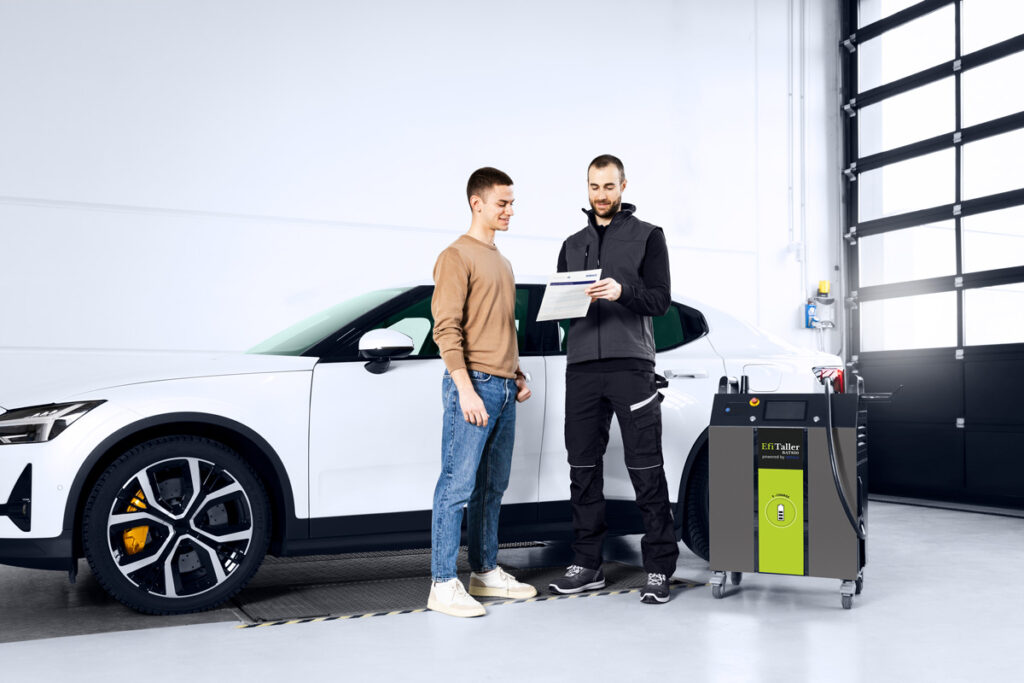

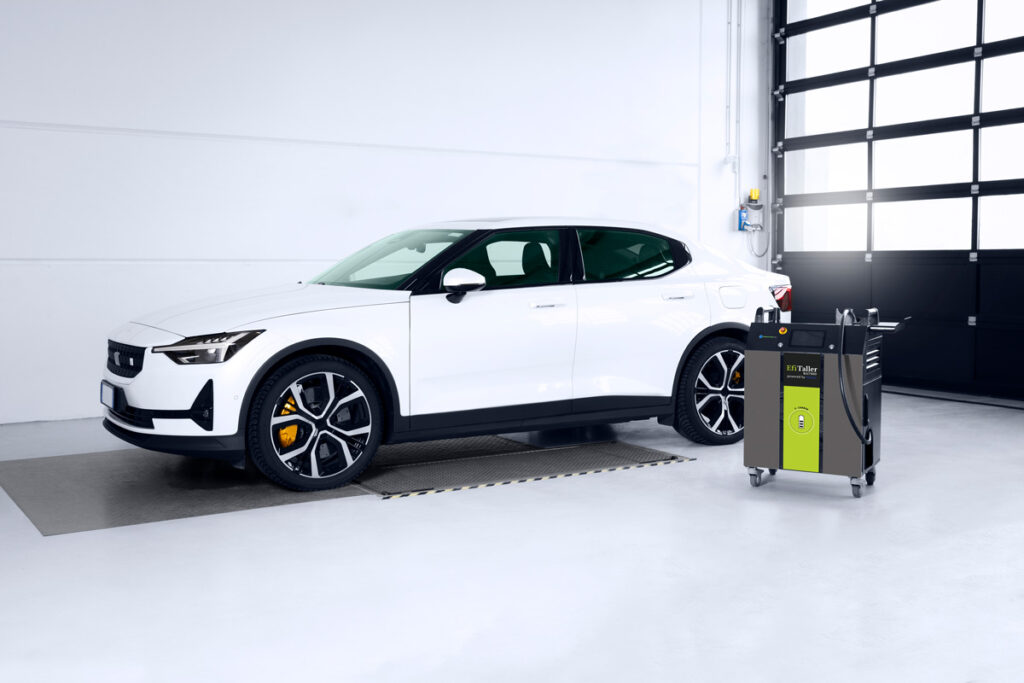

Battery tester images
